8-bit PIC RISC microcontroller featuring 3.5KB Flash memory and 128B RAM. Operates at up to 20MHz with 11 I/O pins, including 12 programmable I/Os. Supports I2C and SPI interfaces, with 10 ADC channels and 4 PWM channels. Offers 3 timers/counters and integrated peripherals like Brown-out Detect/Reset, POR, WDT, and I2C. Packaged in a 14-pin SOIC, this RoHS compliant component operates from 2.3V to 5.5V with a temperature range of -40°C to 85°C.
Frequency20MHz
PackageSOIC
Current1mA
Quick Jump:
Technical Specifications
Microchip PIC16F1503-I/SL technical specifications.
General
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
1.25mm
Interface
I2C, SPI
Lead Free
Lead Free
Length
8.65mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Number of ADC Channels
10
Number of Ethernet Channels
1
Number of I/Os
11
Number of I2C Channels
1
Number of Programmable I/O
12
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
1mA
Watchdog Timer
Yes
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1503-I/SL Datasheet
Download the complete datasheet for Microchip PIC16F1503-I/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

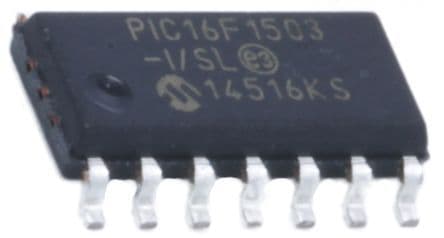

Product Images
