Microchip
PIC16F1526T-I/PT
8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQFP64, 10 X 10 MM, LEAD FREE, PLASTIC, TQFP-64
Frequency20MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC16F1526T-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
SPI, I2C, UART, USART, LIN
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH
Min Supply Voltage
2.5V
Number of I/Os
53
Number of Programmable I/O
53
Number of Timers/Counters
9
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
768B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1526T-I/PT Datasheet
Download the complete datasheet for Microchip PIC16F1526T-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

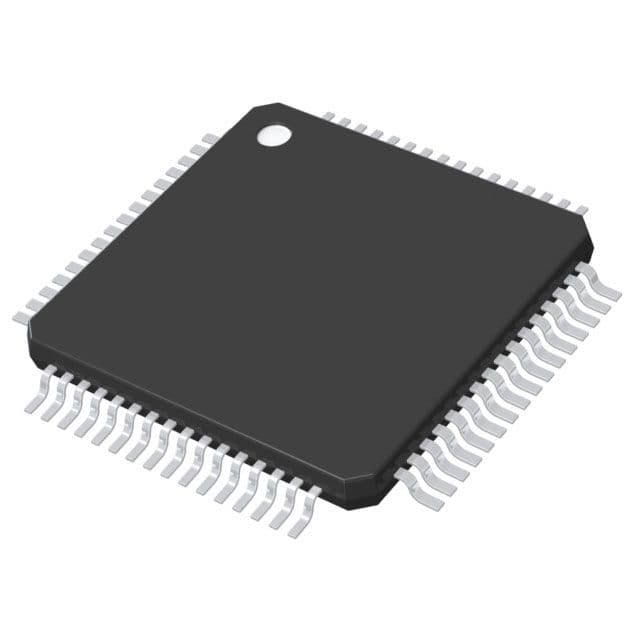

Product Images
