Technical Specifications
Microchip PIC16F1574-I/P technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Interface
UART, USART, LIN
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Through Hole
Number of ADC Channels
8
Number of I/Os
12
Oscillator Type
Internal
Package Quantity
30
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® 16F
Weight
0.079719oz
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1574-I/P Datasheet
Download the complete datasheet for Microchip PIC16F1574-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

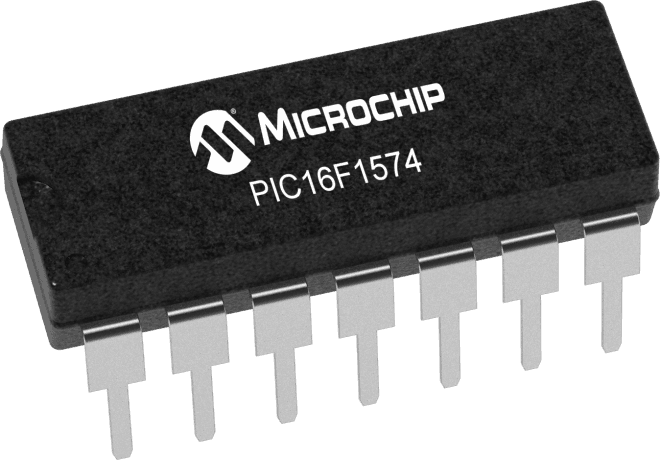

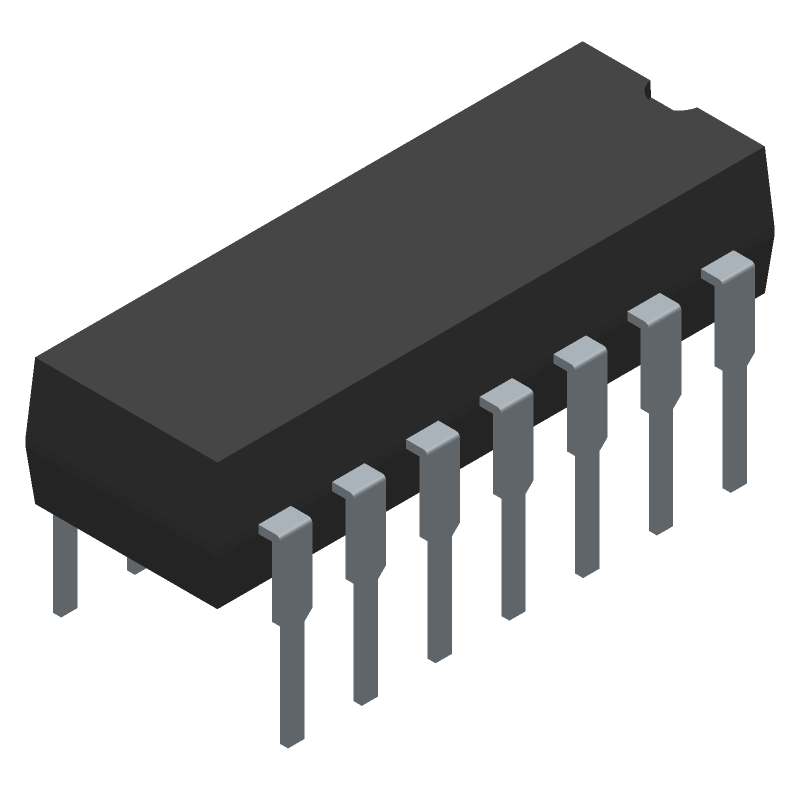

Product Images
