8-bit RISC microcontroller featuring 14KB FLASH memory and 1024B RAM. Operates at up to 32MHz with an internal oscillator and supports UART/USART interfaces. Includes 12 I/Os, 8 ADC channels, 4 PWM channels, and 3 timers. Packaged in a through-hole PDIP for easy mounting, with an operating temperature range of -40°C to 125°C.
Frequency32MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F1575-E/P technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Height
0.13inch
Interface
UART, USART
Length
0.75inch
Max Frequency
32MHz
Max Operating Temperature
125°C
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Through Hole
Number of ADC Channels
8
Number of I/Os
12
Number of PWM Channels
4
Number of Timers/Counters
3
Number of UART Channels
1
Number of USB Channels
0
Operating Supply Voltage
5.5V
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
1024B
RoHS Compliant
Yes
Series
PIC® 16F
Width
0.25inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1575-E/P Datasheet
Download the complete datasheet for Microchip PIC16F1575-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

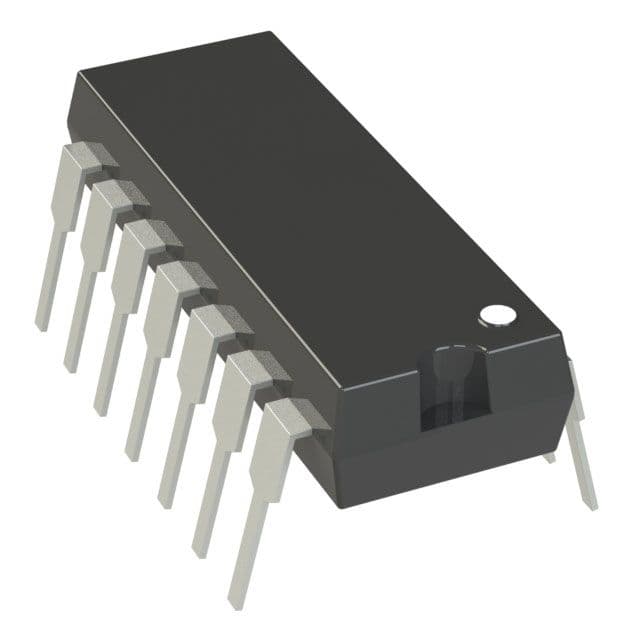

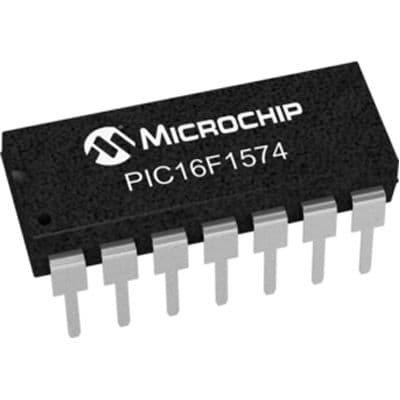

Product Images
