16-bit RISC Microcontroller featuring 7KB FLASH memory and 512B RAM. Operates at up to 32MHz with 12 ADC channels and 12 I/Os. Includes 4 PWM channels, 3 timers/counters, and 1 UART interface. Surface mountable in an SSOP package, with an operating temperature range of -40°C to 85°C.
Frequency32MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1578T-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
16b
Height
2mm
Interface
UART, USART
Length
7.2mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of ADC Channels
12
Number of I/Os
12
Number of PWM Channels
4
Number of Timers/Counters
3
Number of UART Channels
1
Number of USB Channels
0
Operating Supply Voltage
5.5V
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® 16F
Width
7.8mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1578T-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F1578T-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

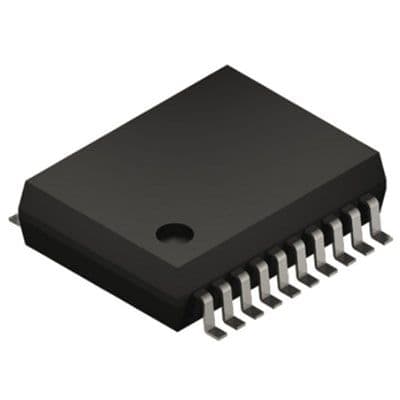

Product Images
