8-bit RISC microcontroller featuring a PIC core architecture. Operates at a maximum frequency of 32MHz with 7KB FLASH memory and 512B RAM. Offers 12 programmable I/O pins, 8 ADC channels, and 2 PWM channels. Supports I2C, SPI, UART, USART, and LIN interfaces. Packaged in a 5mm x 4.4mm x 1.2mm TSSOP, suitable for operation between -40°C and 85°C. Includes internal oscillator, watchdog timer, and peripherals like Brown-out Detect/Reset and POR.
Frequency32MHz
PackageTSSOP
Quick Jump:
Technical Specifications
Microchip PIC16F1704T-I/ST technical specifications.
General
Package/Case
TSSOP
Core Architecture
PIC
Data Bus Width
8b
Height
1.2mm
Interface
I2C, SPI, UART, USART, LIN
Length
5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of ADC Channels
8
Number of I/Os
12
Number of Programmable I/O
12
Number of PWM Channels
2
Number of Timers/Counters
5
Number of UART Channels
1
Number of USB Channels
0
Operating Supply Voltage
5.5V
Oscillator Type
Internal
Package Quantity
2500
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1704T-I/ST Datasheet
Download the complete datasheet for Microchip PIC16F1704T-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

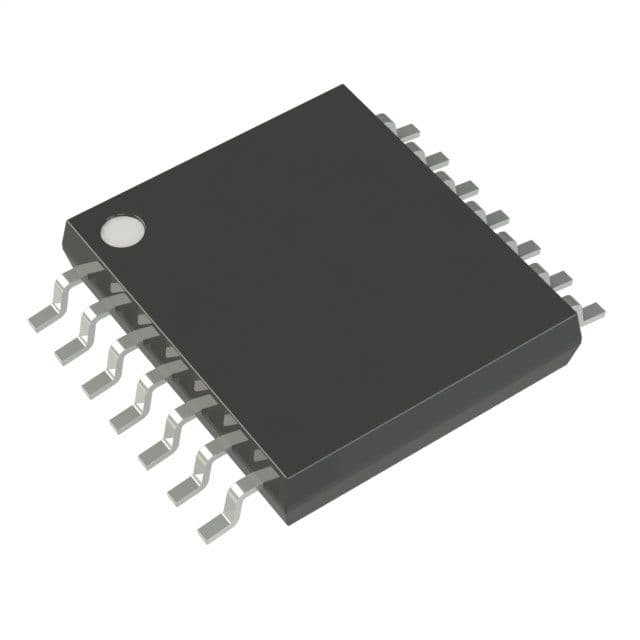

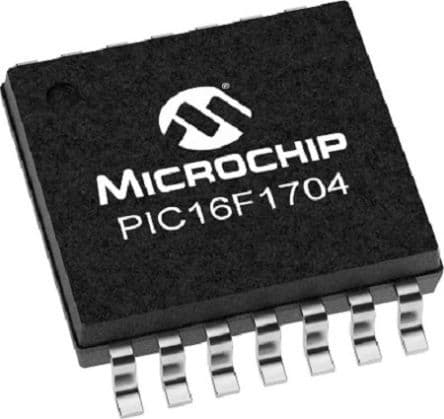

Product Images
