8-bit RISC microcontroller featuring a PIC core architecture. Operates at a maximum frequency of 32MHz with 512B RAM and 7KB FLASH memory. Includes 18 programmable I/O pins, 12 ADC channels, 2 PWM channels, and 5 timers/counters. Supports I2C, SPI, UART, USART, and LIN interfaces. Packaged in a 4mm x 4mm QFN, operating from -40°C to 85°C.
Frequency32MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC16F1708T-I/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Height
0.75mm
Interface
I2C, SPI, UART, USART, LIN
Lead Free
Lead Free
Length
4mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of ADC Channels
12
Number of I/Os
18
Number of Programmable I/O
18
Number of PWM Channels
2
Number of Timers/Counters
5
Number of UART Channels
1
Number of USB Channels
0
Operating Supply Voltage
5.5V
Oscillator Type
Internal
Package Quantity
3300
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1708T-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F1708T-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

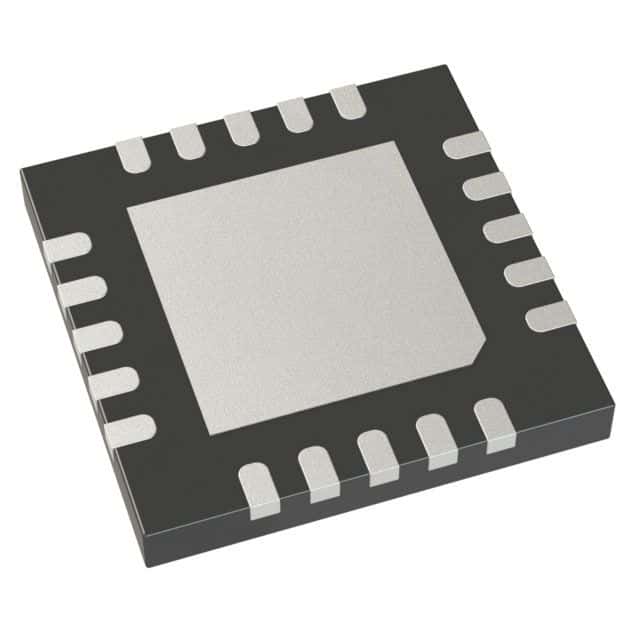

Product Images
