8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 32MHz. This surface mount SOIC package offers 25 programmable I/Os, 17 ADC channels, and 2 PWM channels. Integrated peripherals include I2C, SPI, USART, UART, LIN, and RS-232 interfaces, alongside a watchdog timer. With 7KB of FLASH memory and 512B of RAM, it supports a supply voltage range of 2.3V to 5.5V and operates from -40°C to 85°C.
Frequency32MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1713T-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Height
2.65mm
Interface
I2C, SPI, USART, UART, LIN, RS-232
Length
17.9mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of ADC Channels
17
Number of I/Os
25
Number of Programmable I/O
25
Number of PWM Channels
2
Number of Timers/Counters
5
Number of UART Channels
1
Number of USB Channels
0
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Width
10.3mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1713T-I/SO Datasheet
Download the complete datasheet for Microchip PIC16F1713T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

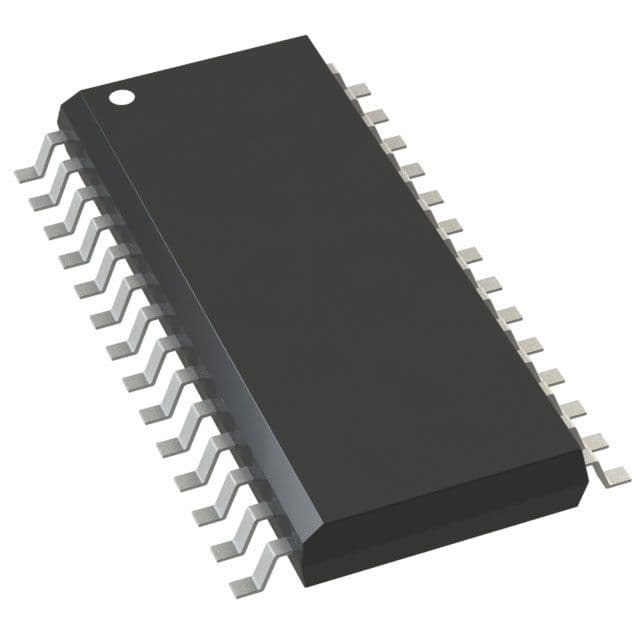

Product Images
