8-bit microcontroller featuring 14KB Flash memory and 1KB RAM. This surface-mount QFN package offers 25 programmable I/Os, 25 ADC channels, and 2 PWM channels. Operates at up to 32MHz with I2C, SPI, and UART interfaces, and includes a watchdog timer. Wide operating temperature range of -40°C to 125°C with a maximum supply voltage of 5.5V.
Frequency32MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1716-E/ML technical specifications.
General
| Package/Case | QFN |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Height | 0.9mm |
| Interface | I2C, SPI, UART, USART |
| Length | 6mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Memory Size | 14KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of ADC Channels | 25 |
| Number of I/Os | 25 |
| Number of Programmable I/O | 25 |
| Number of PWM Channels | 2 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 1 |
| Number of USB Channels | 0 |
| Operating Supply Voltage | 2.5V |
| Oscillator Type | Internal |
| Package Quantity | 61 |
| Packaging | Bulk |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 1024B |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
| Watchdog Timer | Yes |
| Weight | 0.002497oz |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F1716-E/ML Datasheet
Download the complete datasheet for Microchip PIC16F1716-E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

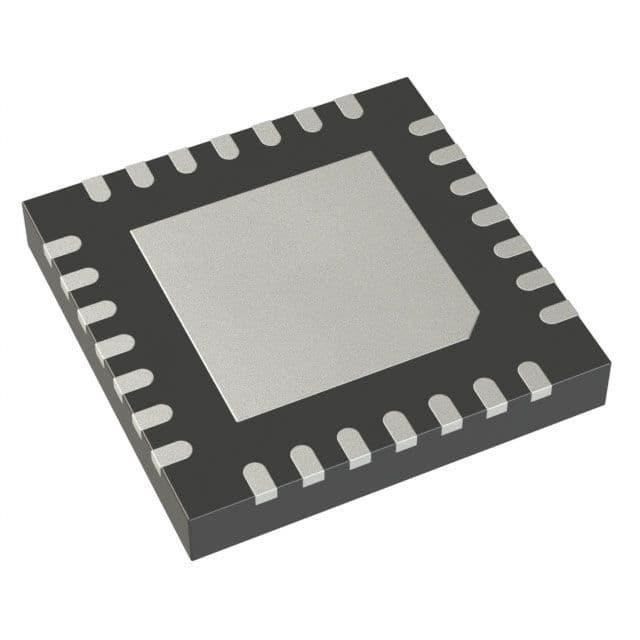

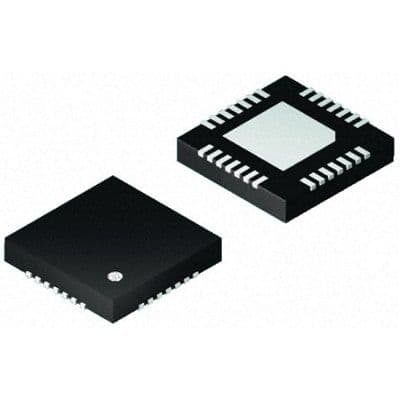

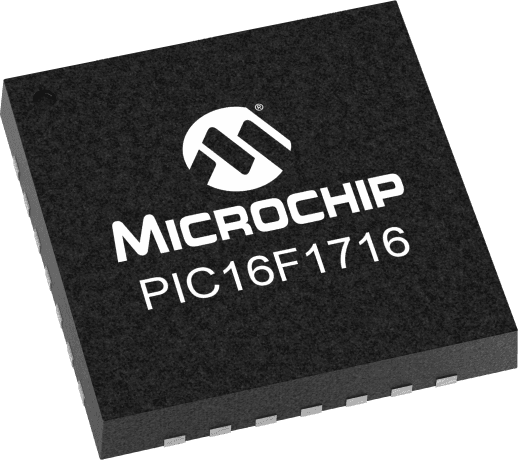

Product Images
