8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 32MHz. This through-hole DIP package offers 14KB of FLASH memory and 1024B of RAM, with 25 programmable I/O pins. Integrated peripherals include I2C, SPI, USART, UART, RS-232, LIN interfaces, 25 ADC channels, and 2 PWM channels. Designed for a supply voltage range of 2.3V to 5.5V, it operates between -40°C and 85°C, with low supply current of 8uA.
Frequency32MHz
PackageDIP
Current8uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F1716-I/SP technical specifications.
General
Address Bus Width
8b
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.15inch
Interface
I2C, SPI, USART, UART, RS-232, LIN
Length
1.4inch
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Through Hole
Number of ADC Channels
25
Number of I/Os
25
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
1
Number of USB Channels
0
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1024B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
8uA
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1716-I/SP Datasheet
Download the complete datasheet for Microchip PIC16F1716-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

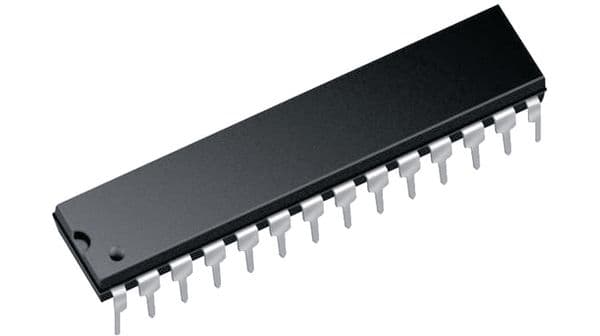

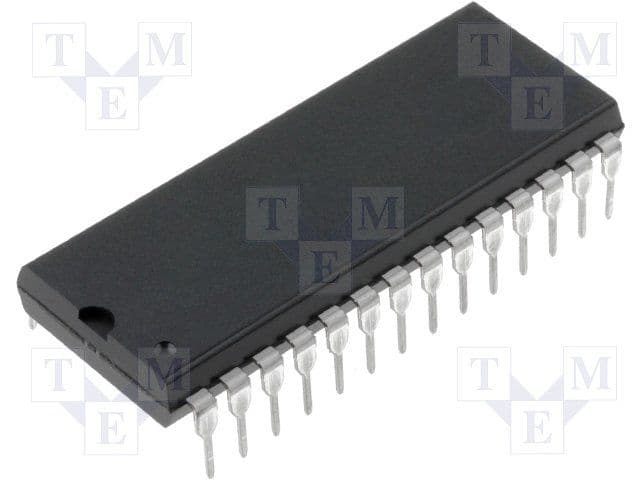

Product Images
