8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 32MHz. Offers 14KB of FLASH memory and 1KB of RAM, with 35 I/Os and 28 ADC channels. Supports I2C, SPI, and UART/USART interfaces, along with 2 PWM channels and 5 timers/counters. Designed for surface mount applications with a 5mm x 5mm footprint and 0.5mm height, operating from 2.5V to 5.5V supply voltage. Includes integrated peripherals like Brown-out Detect/Reset, POR, and WDT, with an internal oscillator.
Frequency16MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1717-E/MV technical specifications.
General
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 16MHz |
| Height | 0.5mm |
| Interface | I2C, SPI, UART, USART |
| Length | 5mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 14KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of ADC Channels | 28 |
| Number of I/Os | 35 |
| Number of PWM Channels | 2 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 1 |
| Number of USB Channels | 0 |
| Oscillator Type | Internal |
| Package Quantity | 73 |
| Packaging | Bulk |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 1KB |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F1717-E/MV Datasheet
Download the complete datasheet for Microchip PIC16F1717-E/MV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

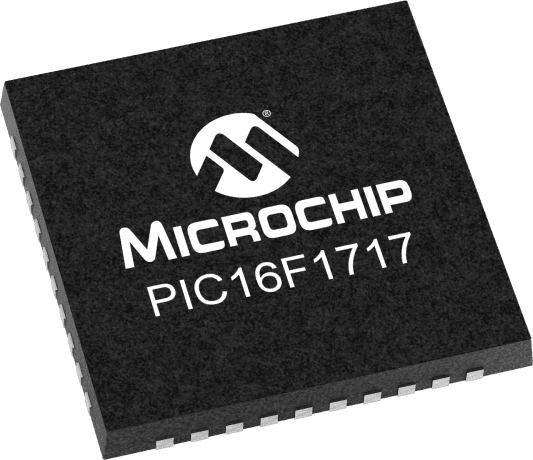

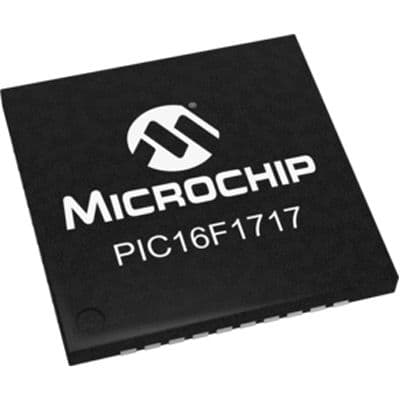

Product Images
