Technical Specifications
Microchip PIC16F1784-E/P technical specifications.
General
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Interface
I2C, SPI, UART, USART
Max Operating Temperature
125°C
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of I/Os
35
Oscillator Type
Internal
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1784-E/P Datasheet
Download the complete datasheet for Microchip PIC16F1784-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

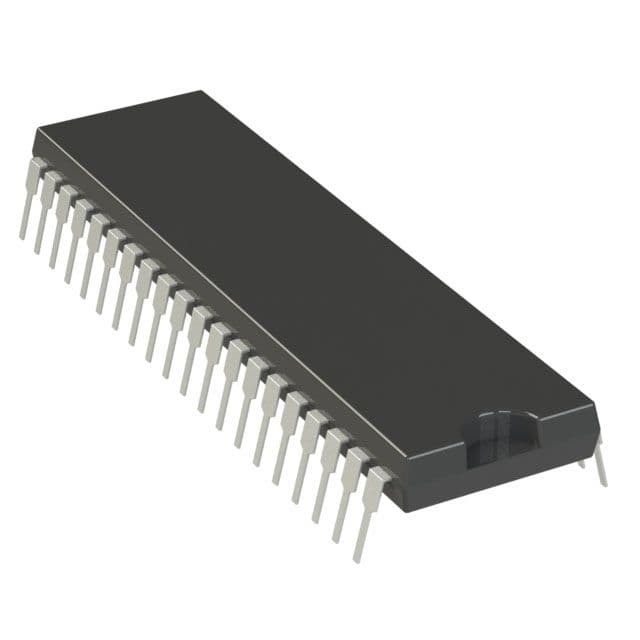

Product Images
