Technical Specifications
Microchip PIC16F1788-E/SP technical specifications.
General
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Interface
I2C, SPI, UART, USART
Max Frequency
32MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
28KB
Memory Type
FLASH,
Min Supply Voltage
2.3V
Number of ADC Channels
11
Number of I/Os
24
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
2KB
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1788-E/SP Datasheet
Download the complete datasheet for Microchip PIC16F1788-E/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

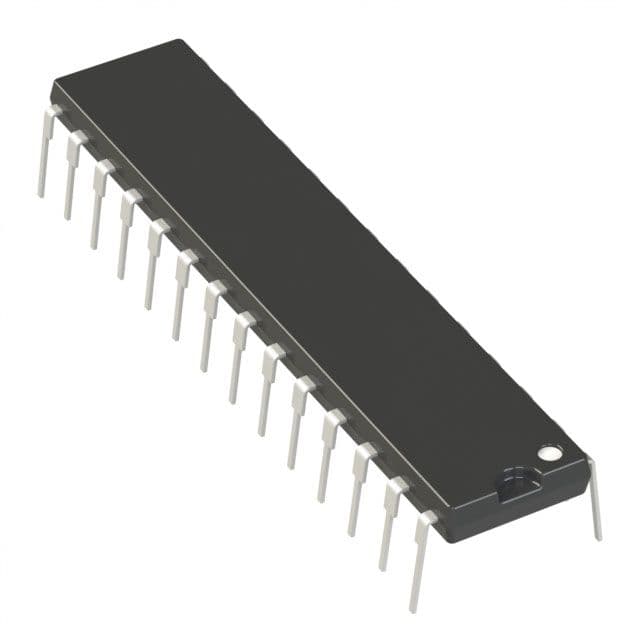

Product Images
