8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 32MHz. This MCU offers 28KB of FLASH memory and 2KB of RAM, with 35 I/O pins including 36 programmable I/O. Integrated peripherals include I2C, SPI, UART, USART, USB, Brown-out Detect/Reset, POR, PWM, and WDT. It supports an internal oscillator and operates within a supply voltage range of 2.3V to 5.5V, with an operating temperature range of -40°C to 85°C.
Frequency32MHz
Current2.1mA
Quick Jump:
Technical Specifications
Microchip PIC16F1789-I/MV technical specifications.
General
Address Bus Width
8b
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.5mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
28KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Number of ADC Channels
14
Number of I/Os
35
Number of I2C Channels
1
Number of Programmable I/O
36
Number of SPI Channels
1
Number of Timers/Counters
3
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
73
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
2.1mA
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1789-I/MV Datasheet
Download the complete datasheet for Microchip PIC16F1789-I/MV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

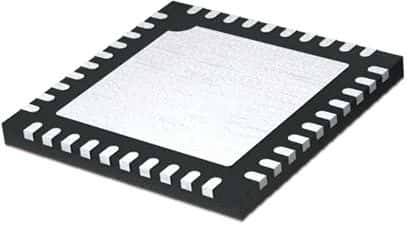

Product Images
