8-bit RISC microcontroller featuring a 32MHz core frequency and 28KB FLASH memory. Offers 35 I/O pins, including 36 programmable I/O, with support for I2C, SPI, UART, USART, and USB interfaces. Includes 14 ADC channels, 3 timers/counters, and peripherals like Brown-out Detect/Reset, POR, PWM, and WDT. Operates from 2.3V to 5.5V supply voltage, with a temperature range of -40°C to 85°C, housed in a PDIP package.
Frequency32MHz
PackagePDIP
Current2.1mA
Quick Jump:
Technical Specifications
Microchip PIC16F1789-I/P technical specifications.
General
| Address Bus Width | 8b |
| Package/Case | PDIP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 32MHz |
| Height | 1.05mm |
| Interface | I2C, SPI, UART, USART |
| Lead Free | Lead Free |
| Length | 10mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 28KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 2.3V |
| Number of ADC Channels | 14 |
| Number of I/Os | 35 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 36 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Number of USB Channels | 1 |
| Oscillator Type | Internal |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 2KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
| Supply Current | 2.1mA |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F1789-I/P Datasheet
Download the complete datasheet for Microchip PIC16F1789-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

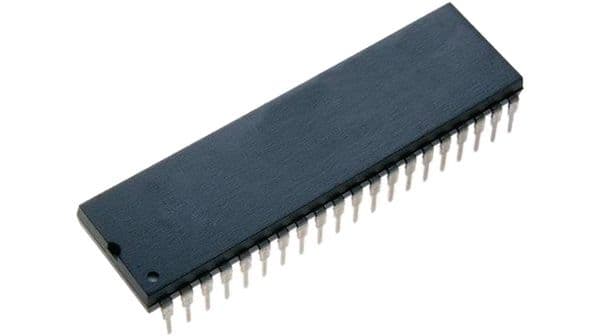

Product Images
