8-bit PIC RISC microcontroller featuring 7KB Flash memory and 256B RAM. Operates at up to 32MHz with an 8-bit address and data bus. Offers 11 programmable I/Os, 8 ADC channels, 4 PWM channels, and 5 timers. Supports I2C, SPI, and UART interfaces. Packaged in a 14-pin SOIC, this lead-free component operates from 2.3V to 5.5V and has a temperature range of -40°C to 85°C.
Frequency32MHz
PackageSOIC
Current145uA
Quick Jump:
Technical Specifications
Microchip PIC16F1824-I/SL technical specifications.
General
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
1.25mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
8.65mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH
Min Supply Voltage
2.3V
Number of ADC Channels
8
Number of I/Os
11
Number of I2C Channels
1
Number of Programmable I/O
11
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
5
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ mTouch™ 16F
Supply Current
145uA
Watchdog Timer
Yes
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1824-I/SL Datasheet
Download the complete datasheet for Microchip PIC16F1824-I/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

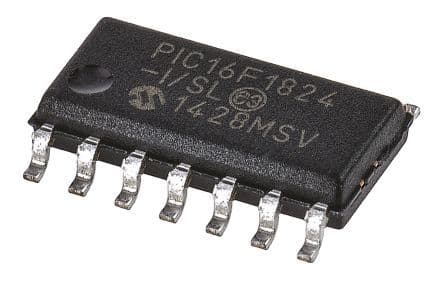

Product Images
