8-bit PIC RISC microcontroller featuring 14KB Flash memory and 1KB RAM. Operates at up to 32MHz with 11 I/O pins and 12 programmable I/O pins. Includes I2C, SPI, USART, and UART interfaces, along with 4 PWM channels and 5 timers/counters. Supports a supply voltage range of 1.8V to 5.5V and operates from -40°C to 85°C. Packaged in a 14-pin SOIC.
Frequency32MHz
PackageSOIC
Current2.8mA
Quick Jump:
Technical Specifications
Microchip PIC16F1825-I/SL technical specifications.
General
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.059inch
Interface
I2C, SPI, USART, UART, LIN
Lead Free
Lead Free
Length
0.34inch
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
11
Number of I2C Channels
1
Number of Programmable I/O
12
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
2.8mA
Watchdog Timer
Yes
Width
0.154inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1825-I/SL Datasheet
Download the complete datasheet for Microchip PIC16F1825-I/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

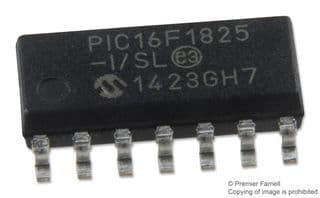

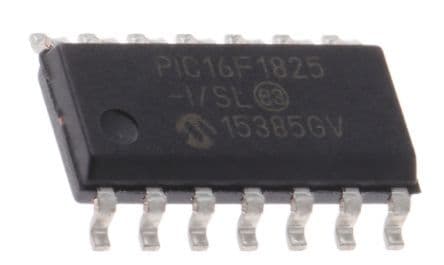

Product Images
