8-bit RISC microcontroller featuring 7KB FLASH memory and 256B RAM. Operates at up to 32MHz with 17 programmable I/O pins. Supports I2C, SPI, UART, and USART interfaces, with 12 ADC channels and 5 timers. Packaged in a 20-pin SOIC, this lead-free component offers a wide operating temperature range of -40°C to 125°C and a supply voltage from 2.3V to 5.5V. Integrated peripherals include Brown-out Detect, POR, PWM, and a Watchdog Timer.
Frequency32MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16F1828-E/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Height
2.35mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
12.8mm
Max Frequency
32MHz
Max Operating Temperature
125°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Number of A/D Converters
1
Number of ADC Channels
12
Number of Bits
8
Number of I/Os
17
Number of I2C Channels
1
Number of Programmable I/O
17
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
1
Number of USB Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
PIC® XLP™ mTouch™ 16F
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1828-E/SO Datasheet
Download the complete datasheet for Microchip PIC16F1828-E/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

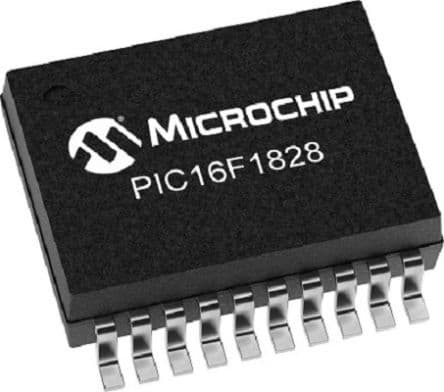

Product Images
