8-bit RISC microcontroller featuring 14KB FLASH memory and 1KB RAM. Operates at up to 32MHz with 17 I/O pins, including 18 programmable I/O. Supports I2C (2 channels), SPI (2 channels), USART, UART (1 channel), and LIN interfaces. Packaged in a 20-pin SSOP with dimensions of 7.5mm x 5.6mm x 1.85mm. Offers a wide operating voltage range of 2.3V to 5.5V and an extended temperature range of -40°C to 125°C. Includes a watchdog timer and is RoHS compliant.
Frequency32MHz
PackageSSOP
Quick Jump:
Technical Specifications
Microchip PIC16F1829-E/SS technical specifications.
General
| Package/Case | SSOP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 32MHz |
| Height | 1.85mm |
| Interface | I2C, SPI, USART, UART, LIN |
| Length | 7.5mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 125°C |
| Memory Size | 14KB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.3V |
| Number of I/Os | 17 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 18 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 1 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RAM Size | 1KB |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
| Width | 5.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F1829-E/SS Datasheet
Download the complete datasheet for Microchip PIC16F1829-E/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

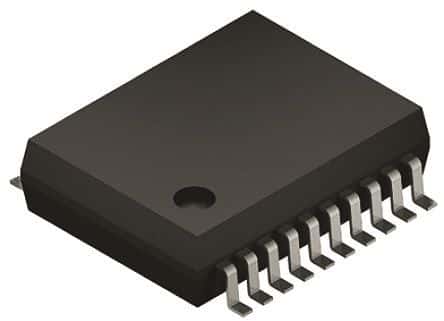

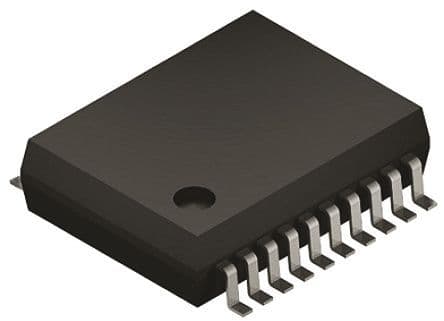

Product Images
