8-bit RISC Flash Microcontroller operating at up to 32MHz. Features 14KB Flash memory, 1KB RAM, and 17 I/O pins. Supports I2C, SPI, USART, UART, and LIN interfaces. Includes 5 timers/counters, internal oscillator, and peripherals like Brown-out Detect, POR, PWM, and WDT. Packaged in a 20-pin SOIC, with an operating temperature range of -40°C to 85°C and a supply voltage of 2.3V to 5.5V.
Frequency32MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16F1829T-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Interface
I2C, SPI, USART, UART, LIN
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH
Min Supply Voltage
2.3V
Number of I/Os
17
Number of Programmable I/O
18
Number of Timers/Counters
5
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
PIC® XLP™ mTouch™ 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1829T-I/SO Datasheet
Download the complete datasheet for Microchip PIC16F1829T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

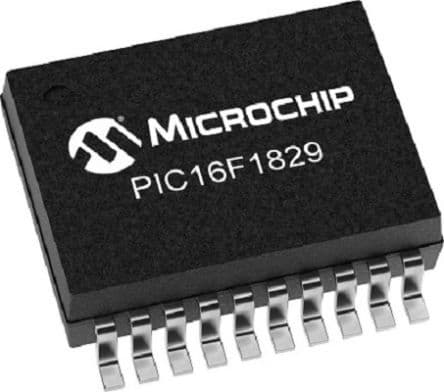

Product Images
