8-bit RISC microcontroller featuring 3.5KB FLASH memory and 256B RAM. Offers 12 I/Os, 11 ADC channels with one A/D converter, and multiple communication interfaces including I2C, SPI, and UART. Operates within a 2.3V to 5.5V supply range, with a maximum operating temperature of 85°C. Through-hole mounting in a DIP package, this lead-free and RoHS compliant component includes peripherals like Brown-out Detect/Reset, POR, PWM, and WDT.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F18323-I/P technical specifications.
General
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Height
5.334mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
11
Number of I/Os
12
Number of I2C Channels
1
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
256B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F18323-I/P Datasheet
Download the complete datasheet for Microchip PIC16F18323-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

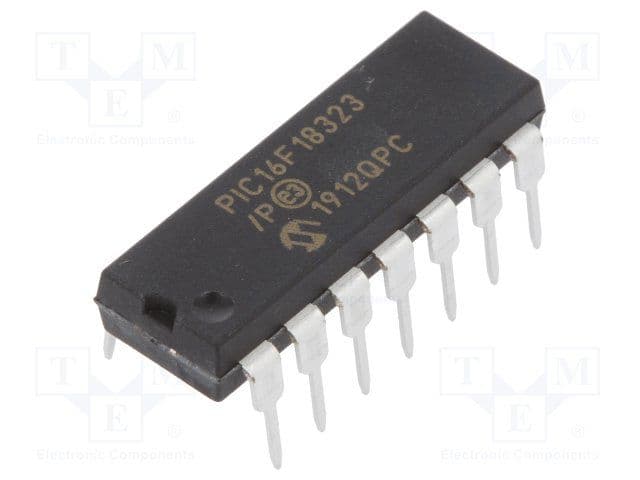

Product Images
