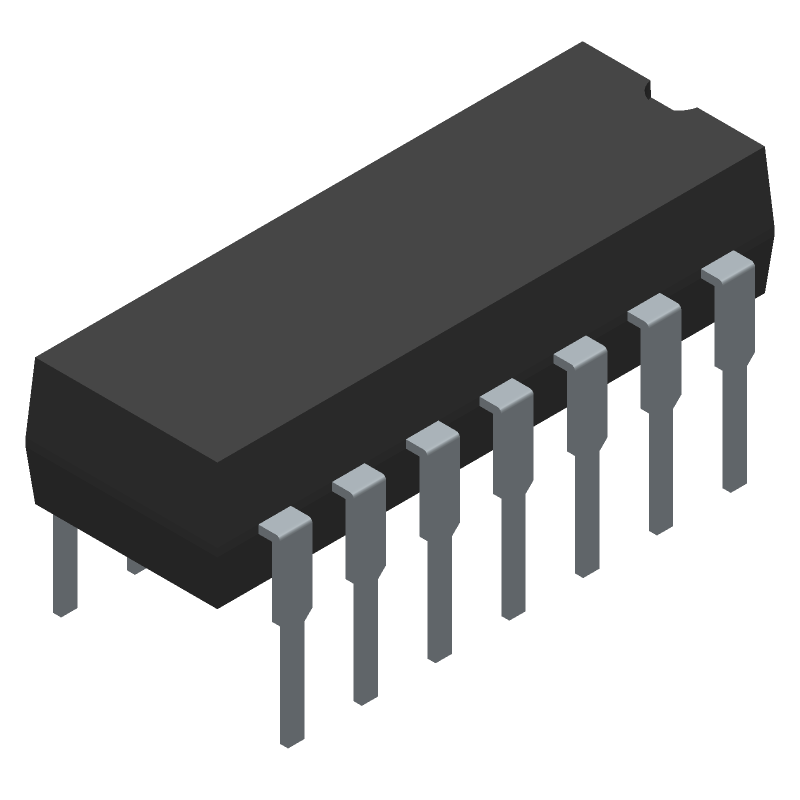

8-bit RISC microcontroller featuring a 32 MHz clock speed and 12 I/O lines. This automotive-grade component operates from 2.5V to 5.5V, with a nominal supply voltage of 3V. It includes PWM and DAC capabilities, along with an ADC. The 14-terminal, dual-position R-PDIP-T14 package is designed for operation between -40°C and 125°C, meeting TS 16949 screening levels.
Frequency32
Quick Jump:
Technical Specifications
Microchip PIC16F18426-E/P technical specifications.
General
Max Operating Temperature
125
Number of Terminals
14
Min Operating Temperature
-40
Terminal Position
DUAL
JEDEC Package Code
R-PDIP-T14
Width
7.62
Length
19.05
Temperature Grade
AUTOMOTIVE
Supply Voltage-Nom
3
Supply Voltage-Min
2.5
Supply Voltage-Max
5.5
Clock Frequency-Max
32
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC
Number of I/O Lines
12
External Data Bus Width
0
Address Bus Width
0
Bit Size
8
Speed
32
ROM Programmability
FLASH
PWM Channels
YES
Has ADC
YES
DMA Channels
NO
DAC Channels
YES
Screening Level
TS 16949
Compliance
RoHS
Yes
HTS Code
8542.31.00.01
REACH
Compliant
Military Spec
False
