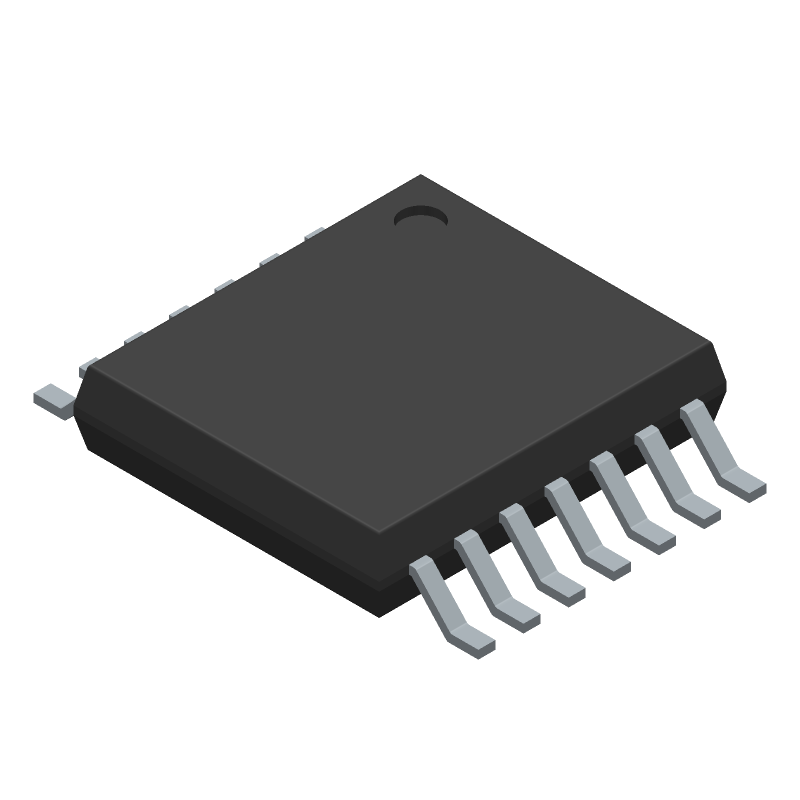

8-bit RISC microcontroller featuring 12 I/O lines and a maximum clock frequency of 32 MHz. This industrial-grade component operates within a temperature range of -40°C to 85°C and supports a supply voltage from 2.5V to 5.5V. It includes PWM channels, an ADC, and a DAC, housed in a 14-terminal R-PDSO-G14 package.
Frequency32
Quick Jump:
Technical Specifications
Microchip PIC16F18426-I/ST technical specifications.
General
Max Operating Temperature
85
Number of Terminals
14
Min Operating Temperature
-40
Terminal Position
DUAL
JEDEC Package Code
R-PDSO-G14
Width
4.4
Length
5
Temperature Grade
INDUSTRIAL
Supply Voltage-Nom
3
Supply Voltage-Min
2.5
Supply Voltage-Max
5.5
Clock Frequency-Max
32
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC
Number of I/O Lines
12
External Data Bus Width
0
Address Bus Width
0
Bit Size
8
Speed
32
ROM Programmability
FLASH
PWM Channels
YES
Has ADC
YES
DMA Channels
NO
DAC Channels
YES
Screening Level
TS 16949
Compliance
RoHS
Yes
HTS Code
8542.31.00.01
REACH
Compliant
Military Spec
False
