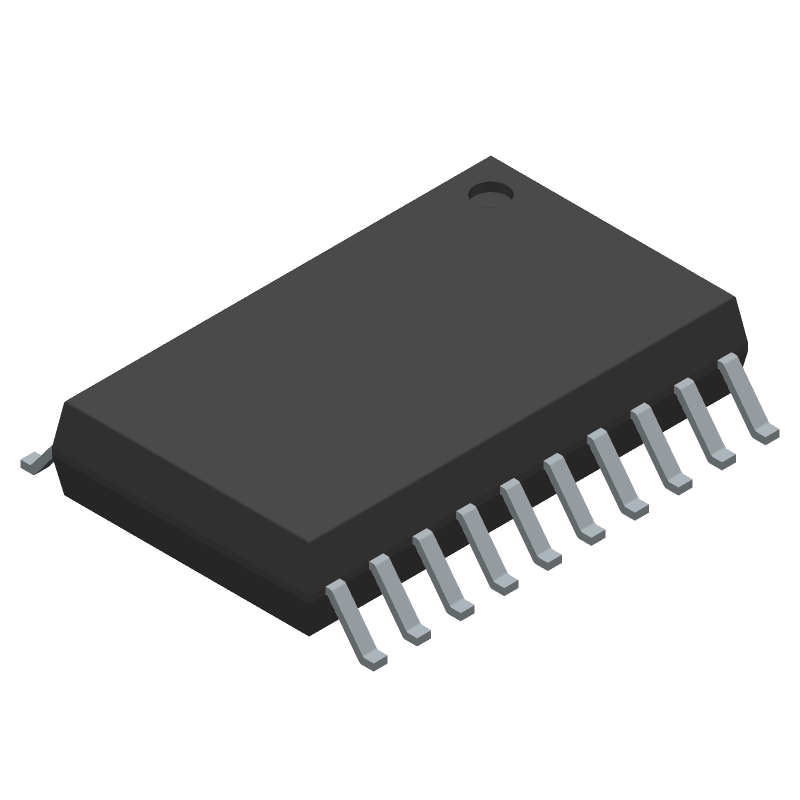

8-bit RISC microcontroller featuring a maximum clock frequency of 32 MHz. This industrial-grade component offers 18 I/O lines, PWM channels, an ADC, and a DAC. Operating within an industrial temperature range of -40°C to 85°C, it supports supply voltages from 2.5V to 5.5V. The 20-terminal device utilizes a FLASH ROM for programmability and is housed in a 20-pin SOIC package.
Frequency32
Quick Jump:
Technical Specifications
Microchip PIC16F18446-I/SO technical specifications.
General
Max Operating Temperature
85
Number of Terminals
20
Min Operating Temperature
-40
Terminal Position
DUAL
JEDEC Package Code
R-PDSO-G20
Width
7.5
Length
12.8
Temperature Grade
INDUSTRIAL
Supply Voltage-Nom
3
Supply Voltage-Min
2.5
Supply Voltage-Max
5.5
Clock Frequency-Max
32
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC
Number of I/O Lines
18
External Data Bus Width
0
Address Bus Width
0
Bit Size
8
Speed
32
ROM Programmability
FLASH
PWM Channels
YES
Has ADC
YES
DMA Channels
NO
DAC Channels
YES
Screening Level
TS 16949
Compliance
RoHS
Yes
HTS Code
8542.31.00.01
REACH
Compliant
Military Spec
False
Datasheet
Microchip PIC16F18446-I/SO Datasheet
Download the complete datasheet for Microchip PIC16F18446-I/SO to view detailed technical specifications.
