8-bit RISC microcontroller featuring 32MHz operation and 14KB FLASH memory. This PDIP-packaged MCU offers 15 programmable I/O pins, 12 ADC channels, and 5 timers/counters. Integrated peripherals include I2C, SPI, UART, USART, LIN interfaces, Brown-out Detect/Reset, POR, PWM, and WDT. Operating voltage ranges from 2.5V to 5.5V with a temperature range of -40°C to 85°C.
Frequency32MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16F1847-I/P technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.195inch
Interface
I2C, SPI, UART, USART, LIN
Lead Free
Lead Free
Length
23.37mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Number of ADC Channels
12
Number of I/Os
15
Number of I2C Channels
2
Number of Programmable I/O
15
Number of SPI Channels
2
Number of Timers/Counters
5
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ mTouch™ 16F
Watchdog Timer
Yes
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1847-I/P Datasheet
Download the complete datasheet for Microchip PIC16F1847-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

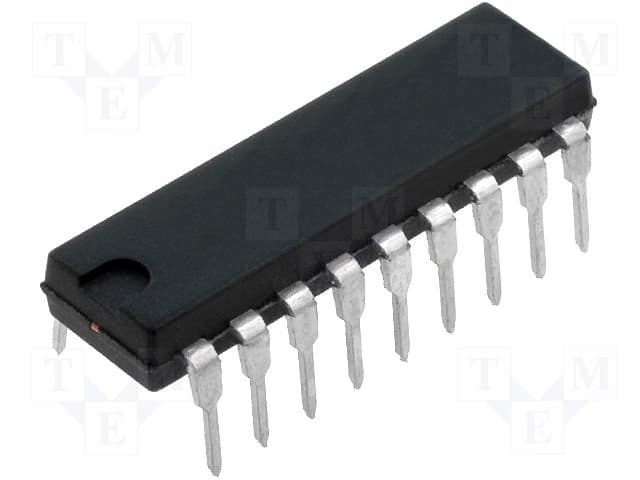

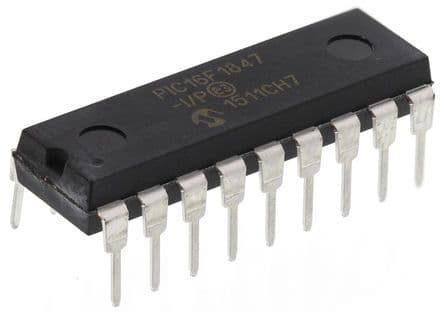

Product Images
