8-bit RISC microcontroller featuring 32MHz clock speed and 7KB FLASH memory. This surface mount device offers 256B RAM, 25 I/O pins, and multiple communication interfaces including SPI, I2C, UART, and USART. Integrated peripherals include a watchdog timer, brown-out detect, and 5 PWM channels. Operates from 1.8V to 5.5V supply voltage with a temperature range of -40°C to 85°C.
Frequency32MHz
PackageQFN
Current3.4mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1933-I/ML technical specifications.
General
Address Bus Width
8b
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Density
7KB
Frequency
32MHz
Height
0.95mm
Interface
SPI, I2C, UART, USART, LIN
Lead Free
Lead Free
Length
0.236inch
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH, , EEPROM
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
11
Number of Bits
8
Number of I/Os
25
Number of I2C Channels
2
Number of Programmable I/O
25
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD, I2C
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3.4mA
Termination
SMD/SMT
Watchdog Timer
Yes
Width
0.236inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1933-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F1933-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

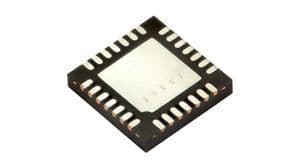

Product Images
