8-bit RISC Flash Microcontroller, operating at up to 32MHz. Features 7KB Flash memory, 256B RAM, and 36 programmable I/O pins. Supports SPI, I2C, and UART/USART interfaces, with 5 timers/counters and integrated peripherals including PWM, WDT, and LCD. Operates from 1.8V to 5.5V supply, with a temperature range of -40°C to 85°C. Packaged in a 44-pin QFN EP for surface mounting.
Frequency32MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1934T-I/ML technical specifications.
General
Package/Case
QFN EP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Interface
SPI, I2C, UART, USART
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Programmable I/O
36
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1934T-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F1934T-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

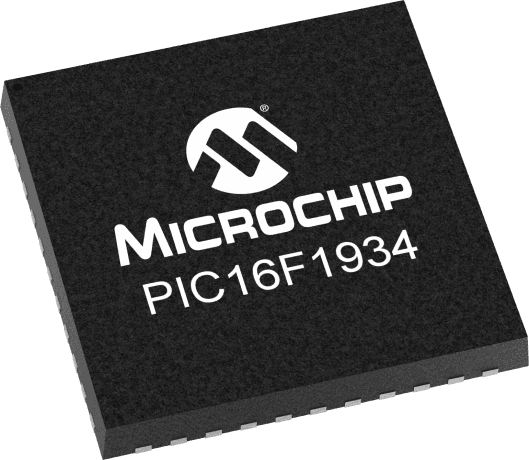

Product Images
