8-bit RISC microcontroller featuring 32MHz clock speed and 14KB FLASH memory. This surface mount device offers 512B RAM, 25 programmable I/O pins, and 11 ADC channels. Integrated peripherals include SPI, I2C, UART, USART, LIN, POR, PWM, WDT, and LCD controllers. Operates from 1.8V to 5.5V supply voltage with a temperature range of -40°C to 125°C. Packaged in a lead-free SSOP-28.
Frequency32MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1936-E/SS technical specifications.
General
| Package/Case | SSOP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 32MHz |
| Height | 1.85mm |
| Interface | SPI, I2C, UART, USART, LIN |
| Lead Free | Lead Free |
| Length | 10.5mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Memory Size | 14KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of ADC Channels | 11 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 25 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 1 |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Peripherals | POR, PWM, WDT, LCD |
| Radiation Hardening | No |
| RAM Size | 512B |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
| Width | 5.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F1936-E/SS Datasheet
Download the complete datasheet for Microchip PIC16F1936-E/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

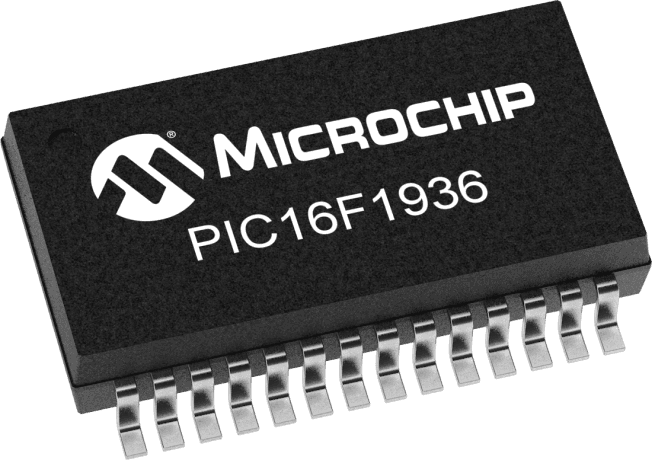

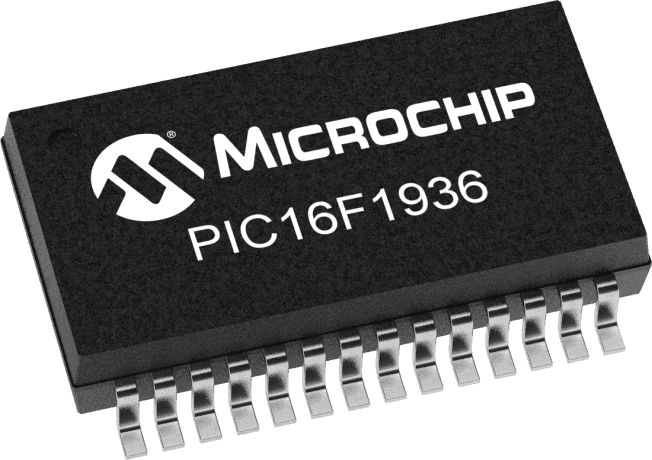

Product Images
