8-bit RISC Flash Microcontroller, operating at up to 32MHz. Features 14KB Flash memory, 512B RAM, and 25 programmable I/O pins. Supports SPI, I2C, UART, and USART interfaces, with 11 ADC channels and 5 timers. Packaged in a 6x6mm QFN, this surface-mount device operates from 1.8V to 5.5V and includes a watchdog timer.
Frequency32MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1936-I/ML technical specifications.
General
| Package/Case | QFN |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 32MHz |
| Height | 0.95mm |
| Interface | SPI, I2C, UART, USART, LIN |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 14KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of ADC Channels | 11 |
| Number of I/Os | 25 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 25 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 5 |
| Oscillator Type | Internal |
| Package Quantity | 61 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, LCD, I2C |
| Radiation Hardening | No |
| RAM Size | 512B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
| Watchdog Timer | Yes |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F1936-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F1936-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

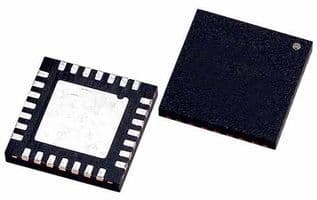

Product Images
