8-bit RISC microcontroller featuring 32MHz operation and 28KB FLASH memory. This QFN-EP packaged MCU offers 53 I/Os, 17 ADC channels, and multiple communication interfaces including I2C, SPI, and UART. Integrated peripherals include 5 PWM channels, 5 timers, and a watchdog timer, with a supply voltage range of 2.3V to 5.5V. Operating from -40°C to 85°C, this RoHS compliant component is ideal for embedded applications.
Frequency32MHz
PackageQFN EP
Quick Jump:
Technical Specifications
Microchip PIC16F1947T-I/MR technical specifications.
General
Package/Case
QFN EP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.037inch
Interface
I2C, SPI, UART, USART
Length
0.354inch
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
28KB
Memory Type
FLASH
Min Supply Voltage
2.3V
Number of A/D Converters
1
Number of ADC Channels
17
Number of Bits
8
Number of I/Os
53
Number of I2C Channels
2
Number of Programmable I/O
54
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Number of USB Channels
1
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Width
0.354inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1947T-I/MR Datasheet
Download the complete datasheet for Microchip PIC16F1947T-I/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

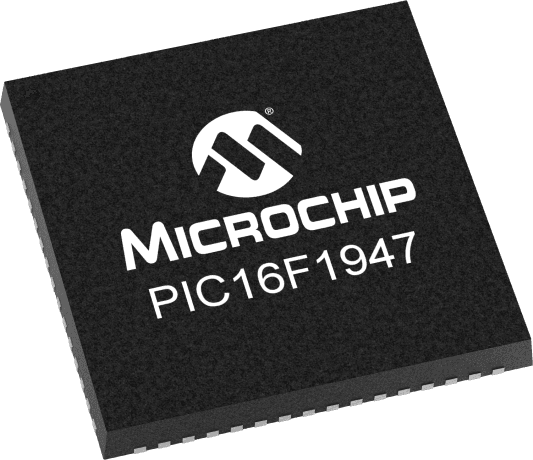

Product Images
