8-bit RISC microcontroller featuring 1.5KB FLASH memory and 72B RAM. Operates at up to 20MHz with an internal oscillator. Offers 11 I/O pins and 12 programmable I/O pins, along with one timer/counter. Packaged in QFN EP for surface mounting, with an operating temperature range of -40°C to 85°C and a maximum supply voltage of 5.5V. Includes Power-on Reset (POR) and Watchdog Timer (WDT) peripherals.
Frequency20MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F505T-I/MG technical specifications.
General
Package/Case
QFN EP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
1.5KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
11
Number of Programmable I/O
12
Number of Timers/Counters
1
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
72B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F505T-I/MG Datasheet
Download the complete datasheet for Microchip PIC16F505T-I/MG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

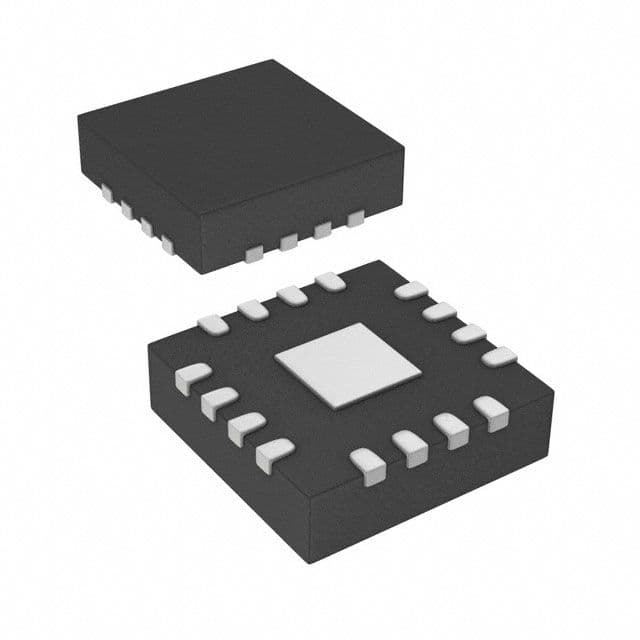

Product Images
