8-bit PIC microcontroller featuring 1.5KB FLASH memory and 67B RAM. Operates at up to 20MHz with an internal oscillator. This surface mount QFN EP package offers 11 I/Os and includes POR and WDT peripherals. Supports supply voltages from 2V to 5.5V, with an operating temperature range of -40°C to 85°C.
Frequency20MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F526-I/MG technical specifications.
General
Package/Case
QFN EP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
700mW
Max Supply Voltage
5.5V
Memory Size
1.5KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
11
Number of Programmable I/O
12
Number of Timers/Counters
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
67B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F526-I/MG Datasheet
Download the complete datasheet for Microchip PIC16F526-I/MG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

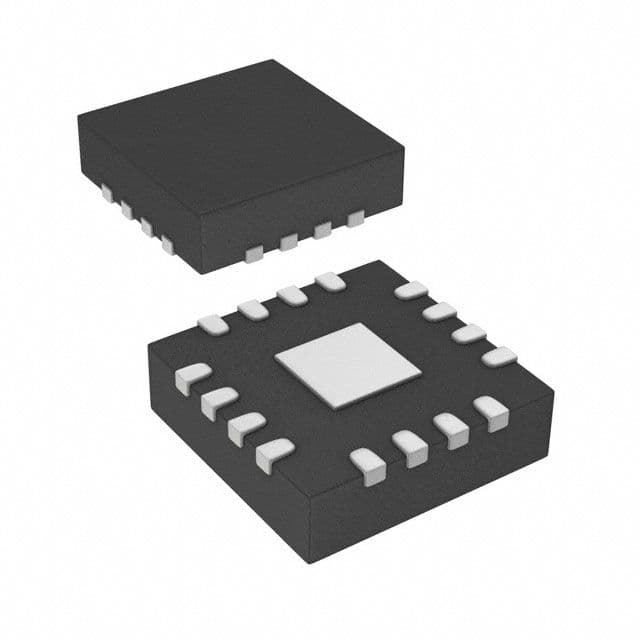

Product Images
