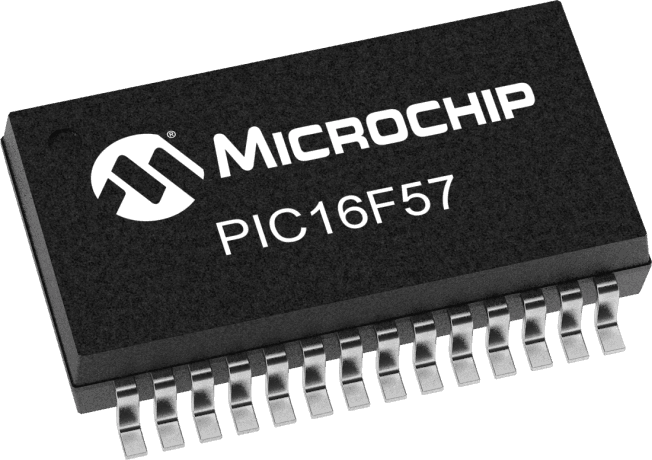

8-bit RISC microcontroller featuring 20MHz clock speed and 3KB FLASH memory. This surface mount device operates from 2V to 5.5V, with a maximum power dissipation of 800mW and an operating temperature range of -40°C to 125°C. Includes 20 programmable I/O pins, one timer/counter, POR, and WDT peripherals. Packaged in a 28-pin SSOP.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F57-E/SS technical specifications.
General
Access Time
20us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Memory Size
3KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Programmable I/O
20
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
47
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
72B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F57-E/SS Datasheet
Download the complete datasheet for Microchip PIC16F57-E/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
