8-bit RISC microcontroller featuring 20MHz operation and 3KB FLASH memory. This surface mount device offers 20 programmable I/O pins, 72 bytes of RAM, and a single timer/counter. Operating from 2V to 5.5V, it supports an external oscillator and includes Power-on Reset (POR) and Watchdog Timer (WDT) peripherals. Packaged in a 28-pin SSOP, it is RoHS compliant and rated for operation between -40°C and 125°C.
Frequency20MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F57T-E/SS technical specifications.
General
Access Time
20us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of Programmable I/O
20
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
2100
Packaging
Tape and Reel
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
72B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F57T-E/SS Datasheet
Download the complete datasheet for Microchip PIC16F57T-E/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

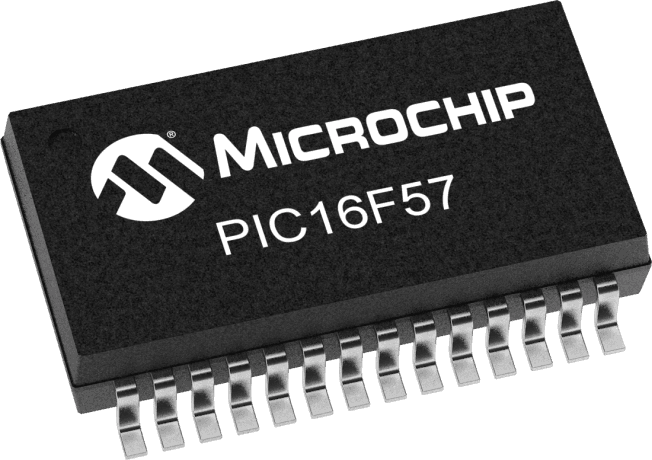

Product Images
