8-bit RISC microcontroller featuring 20MHz operation and 1.75KB FLASH memory. Includes 224B RAM, 16 programmable I/Os, and 3 timers/counters. Supports USART, SCI, and UART interfaces with internal oscillator. Packaged in a lead-free PDIP-18 (DIP-18) with a maximum operating temperature of 70°C. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, and WDT.
Frequency20MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16F627-20/P technical specifications.
General
Access Time
20us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
3.68mm
Interface
USART, SCI, UART
Lead Free
Lead Free
Length
22.99mm
Max Frequency
20MHz
Max Operating Temperature
70°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
1.75KB
Memory Type
FLASH
Min Operating Temperature
0°C
Min Supply Voltage
3V
Number of I/Os
16
Number of Programmable I/O
16
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
224B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F627-20/P Datasheet
Download the complete datasheet for Microchip PIC16F627-20/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

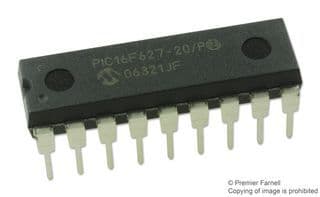

Product Images
