8-bit RISC microcontroller featuring 20MHz clock speed and 1.75KB FLASH memory. Offers 16 programmable I/O pins, 224B RAM, and includes peripherals like PWM, WDT, and Brown-out Detect. Supports USART, SCI, and UART interfaces, operating from 3V to 5.5V with an access time of 20µs. Packaged in a PDIP-18 configuration, this RoHS compliant component operates across a -40°C to 85°C temperature range.
Frequency20MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16F627-20I/P technical specifications.
General
Access Time
20us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
USART, SCI, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
1.75KB
Memory Type
FLASH
Min Supply Voltage
3V
Number of Bits
8
Number of I/Os
16
Number of Programmable I/O
16
Number of PWM Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
224B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F627-20I/P Datasheet
Download the complete datasheet for Microchip PIC16F627-20I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

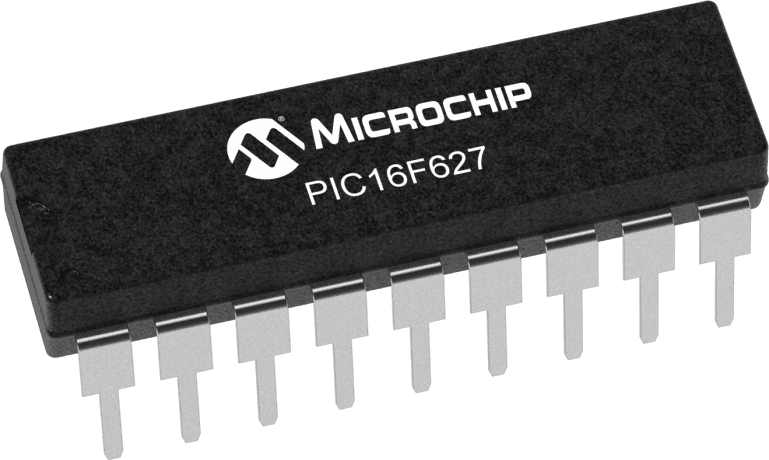

Product Images
