8-bit RISC microcontroller featuring 20MHz operation and 1.75KB FLASH memory. This through-hole component offers 16 programmable I/Os, a single PWM channel, and three timers/counters. Integrated peripherals include USART, SCI, UART, Brown-out Detect/Reset, POR, and a Watchdog Timer. Operating within a 3V to 5.5V supply range, it supports a maximum power dissipation of 800mW and an operating temperature range of -40°C to 125°C.
Frequency20MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F627A-E/P technical specifications.
General
Access Time
20us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
USART, SCI, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
1.75KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Through Hole
Number of I/Os
16
Number of Programmable I/O
16
Number of PWM Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
224B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F627A-E/P Datasheet
Download the complete datasheet for Microchip PIC16F627A-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

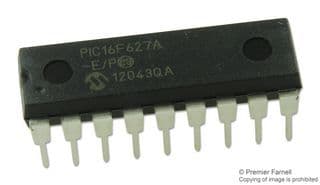

Product Images
