8-bit RISC microcontroller featuring 20MHz operation and 1.75KB FLASH memory. This surface mount device offers 16 programmable I/Os, 3 timers/counters, 1 PWM channel, and a UART interface. Operating from 3V to 5.5V, it includes peripherals like Brown-out Detect, POR, and WDT. Packaged in an 18-pin SOIC, it supports a temperature range of -40°C to 85°C.
Frequency20MHz
PackageSOIC
Current600uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F627A-I/SO technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Density
1.75KB
Frequency
20MHz
Height
2.35mm
Interface
USART, SCI, UART
Lead Free
Lead Free
Length
11.55mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
1.75KB
Memory Type
FLASH,
Min Supply Voltage
3V
Mount
Surface Mount
Number of Bits
8
Number of I/Os
16
Number of Programmable I/O
16
Number of PWM Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
42
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
224B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
600uA
Termination
SMD/SMT
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F627A-I/SO Datasheet
Download the complete datasheet for Microchip PIC16F627A-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

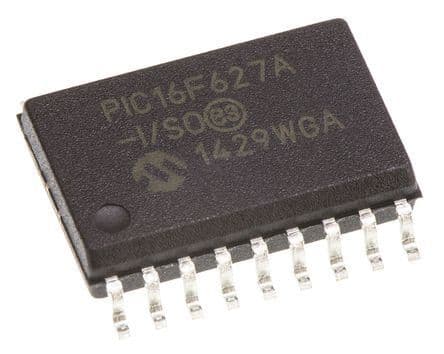

Product Images
