8-bit RISC microcontroller featuring 3.5KB FLASH memory and 224B RAM. Operates at up to 20MHz with an 8-bit data bus. Includes USART, SCI, and UART interfaces, along with 16 programmable I/Os and 3 timers/counters. Peripherals include Brown-out Detect/Reset, POR, PWM, and WDT. Packaged in a lead-free PDIP with a temperature range of -40°C to 125°C.
Frequency20MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F628A-E/P technical specifications.
General
Access Time
20us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
USART, SCI, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Through Hole
Number of I/Os
16
Number of Programmable I/O
16
Number of PWM Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
224B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F628A-E/P Datasheet
Download the complete datasheet for Microchip PIC16F628A-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

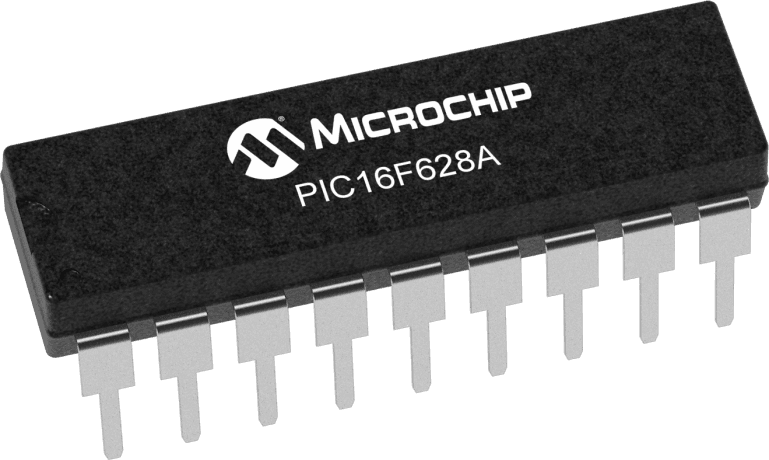

Product Images
