8-bit RISC microcontroller featuring 20MHz clock speed and 1.75KB FLASH memory. This through-hole component offers 18 programmable I/Os, 64B RAM, and two timers. Operates from 4.5V to 5.5V with a maximum power dissipation of 800mW. Includes Brown-out Detect/Reset, POR, WDT, and PWM peripherals. Packaged in a 20-pin PDIP with a temperature range of -40°C to 85°C.
Frequency20MHz
PackagePDIP
Current220uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F631-I/P technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.195inch
Lead Free
Lead Free
Length
26.92mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
1.75KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Bits
8
Number of I/Os
18
Number of Programmable I/O
18
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
22
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, WDT, PWM
Radiation Hardening
No
RAM Size
64B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
220uA
Watchdog Timer
Yes
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F631-I/P Datasheet
Download the complete datasheet for Microchip PIC16F631-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

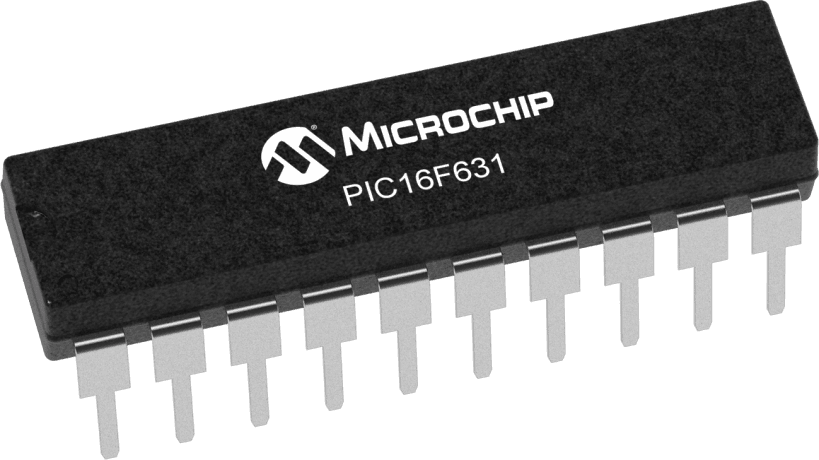

Product Images
