8-bit RISC microcontroller featuring 7KB FLASH memory and 256B RAM. Operates at up to 20MHz with an 8-bit data bus. Includes internal oscillator, 3 timers/counters, and 16 programmable I/O pins. Supports USART, SCI, and UART interfaces. Packaged in a 28-pin QFN for surface mounting, with a temperature range of -40°C to 125°C and a maximum supply voltage of 5.5V. RoHS compliant and lead-free.
Frequency20MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F648A-E/ML technical specifications.
General
Access Time
20us
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
USART, SCI, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Supply Voltage
3V
Mount
Surface Mount
Number of Programmable I/O
16
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F648A-E/ML Datasheet
Download the complete datasheet for Microchip PIC16F648A-E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

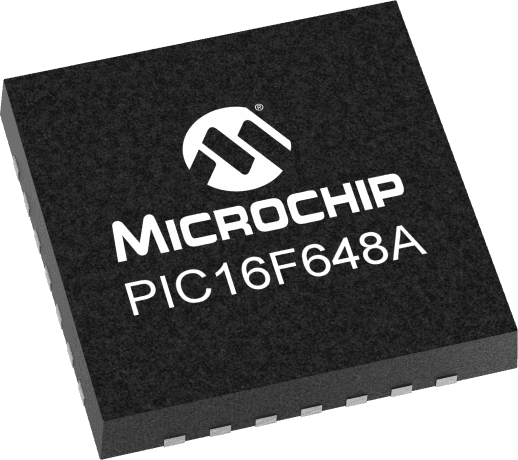

Product Images
