8-bit PIC RISC microcontroller featuring 7KB Flash memory and 256B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Includes 12 programmable I/Os, 8 A/D channels, and interfaces for USART, SCI, UART, I2C, and SPI. Supports through-hole mounting in a PDIP package, with an operating temperature range of -40°C to 85°C. On-chip peripherals include Brown-out Detect/Reset, POR, and WDT.
Frequency20MHz
PackagePDIP
Current3.1mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F688-I/P technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Density
7KB
Frequency
20MHz
Height
0.195inch
Interface
USART, SCI, UART
Lead Free
Lead Free
Length
19.69mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
12
Number of I2C Channels
1
Number of Programmable I/O
12
Number of PWM Channels
0
Number of SPI Channels
1
Number of Timers/Counters
2
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
30
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, WDT, PWM
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
3.1mA
Watchdog Timer
Yes
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F688-I/P Datasheet
Download the complete datasheet for Microchip PIC16F688-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

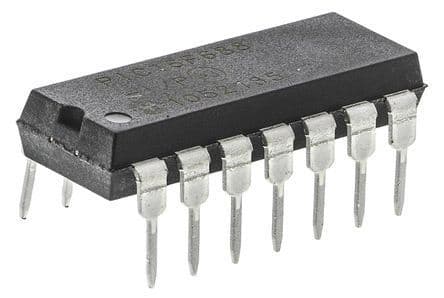

Product Images
