8-bit RISC microcontroller featuring 7KB Flash memory and 256B RAM. Operates at up to 20MHz with an 8-bit data bus. Includes 12 programmable I/O pins, 8 A/D channels, and interfaces for USART, SCI, UART, I2C, and SPI. TSSOP package, suitable for surface mounting, with a wide operating temperature range of -40°C to 85°C. Features include a watchdog timer and brown-out detect.
Frequency20MHz
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F688-I/ST technical specifications.
General
Access Time
20us
Package/Case
TSSOP
Core Architecture
PIC
Data Bus Width
8b
Density
7KB
Frequency
20MHz
Height
1.05mm
Interface
USART, SCI, UART
Lead Free
Lead Free
Length
5.1mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
12
Number of I2C Channels
1
Number of Programmable I/O
12
Number of SPI Channels
1
Number of Timers/Counters
2
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
96
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, WDT
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F688-I/ST Datasheet
Download the complete datasheet for Microchip PIC16F688-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

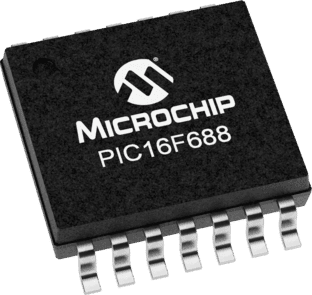

Product Images
