8-bit RISC microcontroller featuring 7KB FLASH memory and 256B RAM. Operates at a maximum frequency of 20MHz with an 8-bit data bus width. Supports RS-232, USB, SCI, UART, and USART interfaces. Includes internal oscillator, 2 timers/counters, and peripherals like Brown-out Detect/Reset, POR, and WDT. Packaged in a lead-free QFN surface mount package, suitable for operation between -40°C and 85°C.
Frequency20MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F688T-I/ML technical specifications.
General
Access Time
20us
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
RS-232, USB, SCI, UART, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Programmable I/O
12
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
3300
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, WDT
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
PIC® 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F688T-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F688T-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

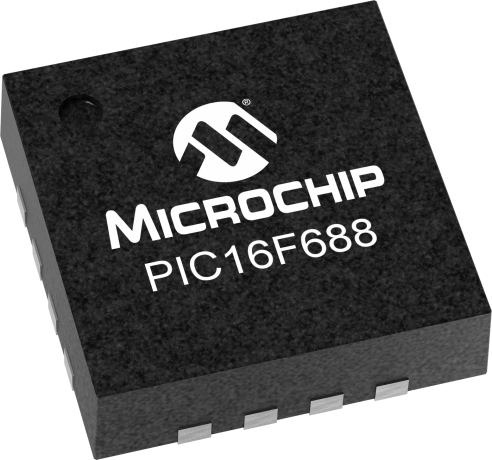

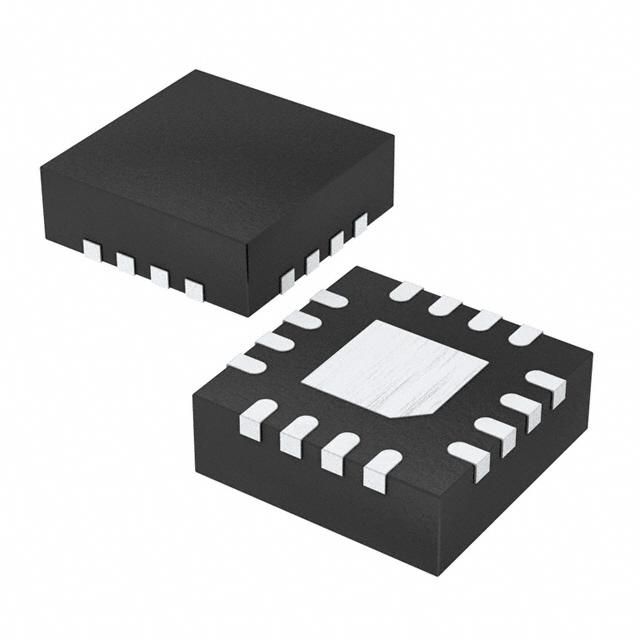

Product Images
