8-bit PIC RISC microcontroller featuring 7KB Flash memory and 256B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Offers 18 programmable I/Os, multiple interfaces including I2C, SPI, and UART, and 12 A/D channels. Includes peripherals like Brown-out Detect, POR, PWM, and Watchdog Timer. Packaged in a 20-pin QFN with a temperature range of -40°C to 85°C.
Frequency20MHz
PackageQFN
Current220uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F690-I/ML technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.95mm
Interface
I2C, SPI, SSP, UART, USART
Lead Free
Lead Free
Length
4mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
12
Number of Bits
8
Number of I/Os
18
Number of I2C Channels
1
Number of Programmable I/O
18
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
91
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
220uA
Watchdog Timer
Yes
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F690-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F690-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

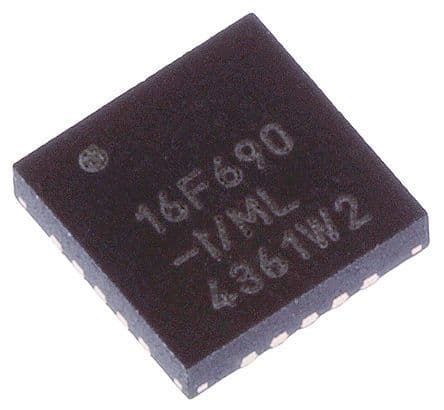

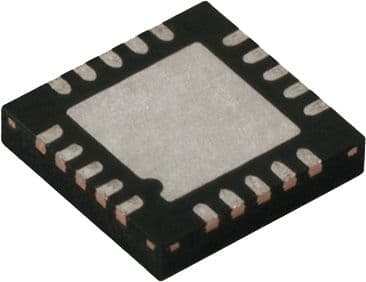

Product Images
