8-bit RISC Flash microcontroller operating at 20MHz. Features 14KB Flash memory, 363B RAM, and 35 I/O pins. Supports I2C, SPI, and UART interfaces. Includes 6 timers/counters, internal oscillator, and peripherals like PWM and Watchdog Timer. Operates from 2.3V to 5.5V with a temperature range of -40°C to 125°C. Packaged in a lead-free QFN EP.
Frequency20MHz
PackageQFN EP
Quick Jump:
Technical Specifications
Microchip PIC16F707-E/ML technical specifications.
General
Package/Case
QFN EP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, USART, UART
Max Frequency
20MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH
Min Supply Voltage
2.3V
Number of I/Os
35
Number of Programmable I/O
36
Number of Timers/Counters
6
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
363B
RoHS Compliant
Yes
Series
PIC® XLP™ mTouch™ 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F707-E/ML Datasheet
Download the complete datasheet for Microchip PIC16F707-E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

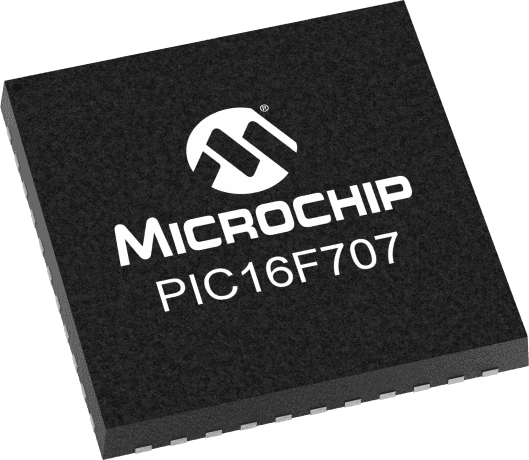

Product Images
