8-bit RISC microcontroller featuring 20MHz operation and 14KB FLASH memory. This PDIP-40 packaged MCU offers 35 I/Os, including 36 programmable I/Os, and supports I2C, SPI, and UART interfaces. Key peripherals include a watchdog timer, 14 ADC channels, and 2 PWM channels, operating from 1.8V to 5.5V. With a temperature range of -40°C to 85°C, this RoHS compliant component is ideal for embedded applications.
Frequency20MHz
PackagePDIP
Current1.9mA
Quick Jump:
Technical Specifications
Microchip PIC16F707-I/P technical specifications.
General
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.195inch
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
53.21mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
14KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Number of ADC Channels
14
Number of I/Os
35
Number of I2C Channels
1
Number of Programmable I/O
36
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
6
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
363B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ mTouch™ 16F
Supply Current
1.9mA
Watchdog Timer
Yes
Width
0.58inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F707-I/P Datasheet
Download the complete datasheet for Microchip PIC16F707-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

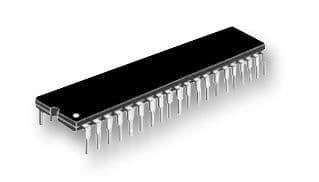

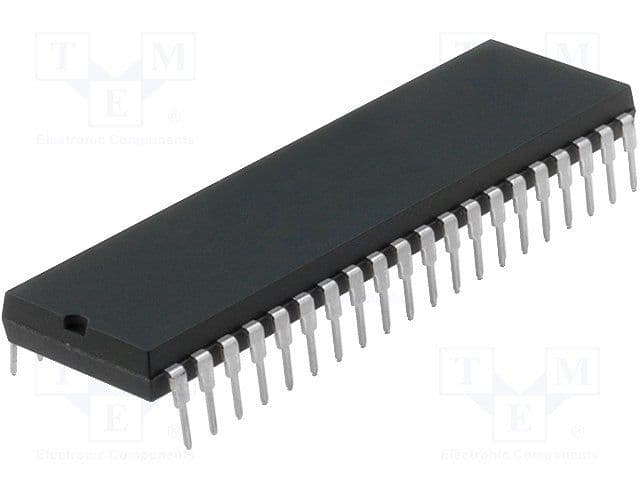

Product Images
