8-bit Flash Microcontroller (MCU) operating at up to 20MHz. Features 3.5KB Flash memory, 128B RAM, and 22 programmable I/O pins. Supports I2C, SPI, and SSP interfaces, with one A/D converter offering 5 channels and one PWM channel. Includes Brown-out Detect/Reset, POR, WDT, and 3 timers/counters. Packaged in a 28-pin SOIC (SOIC-28) for surface mounting, with a temperature range of -40°C to 85°C.
Frequency20MHz
PackageSOIC
Current900uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F72-I/SO technical specifications.
General
| Access Time | 20us |
| Address Bus Width | 8b |
| Package/Case | SOIC |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Density | 3.5KB |
| Frequency | 20MHz |
| Height | 2.35mm |
| Interface | I2C, SPI, SSP |
| Lead Free | Lead Free |
| Length | 17.9mm |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 3.5KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 5 |
| Number of Bits | 8 |
| Number of I/Os | 22 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 22 |
| Number of PWM Channels | 1 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Oscillator Type | External |
| Package Quantity | 27 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, I2C |
| Radiation Hardening | No |
| RAM Size | 128B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® 16F |
| Supply Current | 900uA |
| Watchdog Timer | Yes |
| Width | 7.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F72-I/SO Datasheet
Download the complete datasheet for Microchip PIC16F72-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

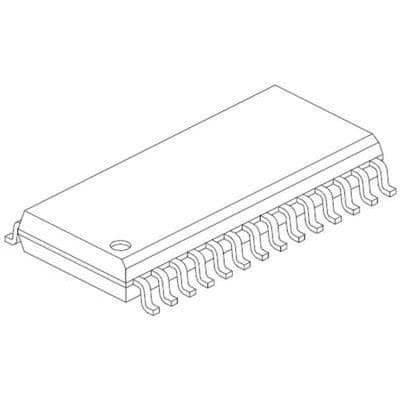

Product Images
