8-bit Flash Microcontroller, operating at up to 20MHz, features an 8-bit PIC core architecture with 3.5KB of FLASH memory and 128B of RAM. This surface mount device, housed in a 28-pin SSOP package, offers 22 programmable I/O pins and supports I2C, SPI, and SSP interfaces. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer, with 5 ADC channels and 3 timers/counters. Designed for operation between -40°C and 85°C, it requires a supply voltage range of 2V to 5.5V.
Frequency20MHz
PackageSSOP
Current900uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F72-I/SS technical specifications.
General
Access Time
20us
Address Bus Width
8b
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Density
3.5KB
Frequency
20MHz
Height
1.85mm
Interface
I2C, SPI, SSP
Lead Free
Lead Free
Length
10.5mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
3.5KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
5
Number of Bits
8
Number of I/Os
22
Number of I2C Channels
1
Number of Programmable I/O
22
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
External
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
900uA
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F72-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F72-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

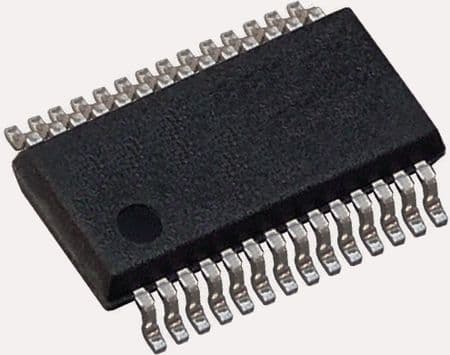

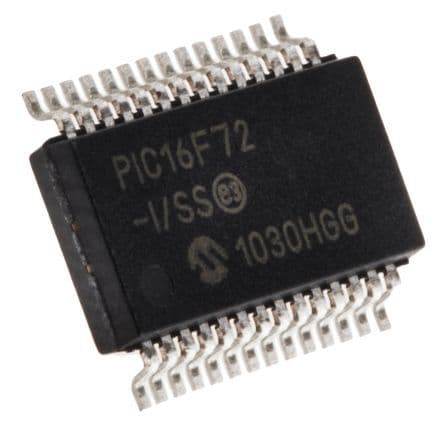

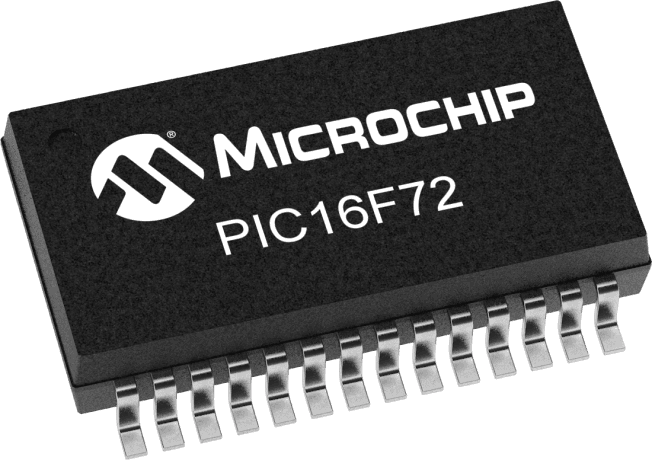

Product Images
