8-bit RISC Flash Microcontroller operating at up to 20MHz. Features 7KB Flash memory, 192B RAM, and 24 programmable I/O pins. Integrated peripherals include I2C, SPI, and UART interfaces, along with 11 ADC channels, 2 PWM channels, and 3 timers. Packaged in a 28-pin SOIC with a wide operating voltage range of 1.8V to 5.5V and an operating temperature range of -40°C to 85°C. RoHS compliant.
Frequency20MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16F723A-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
2.35mm
Interface
I2C, SPI, USART, UART
Length
17.9mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
7KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Number of A/D Converters
1
Number of ADC Channels
11
Number of Bits
8
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
24
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
192B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F723A-I/SO Datasheet
Download the complete datasheet for Microchip PIC16F723A-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

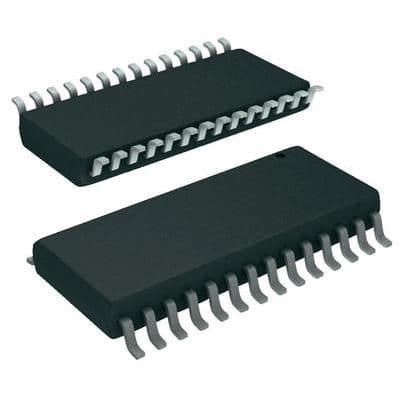

Product Images
